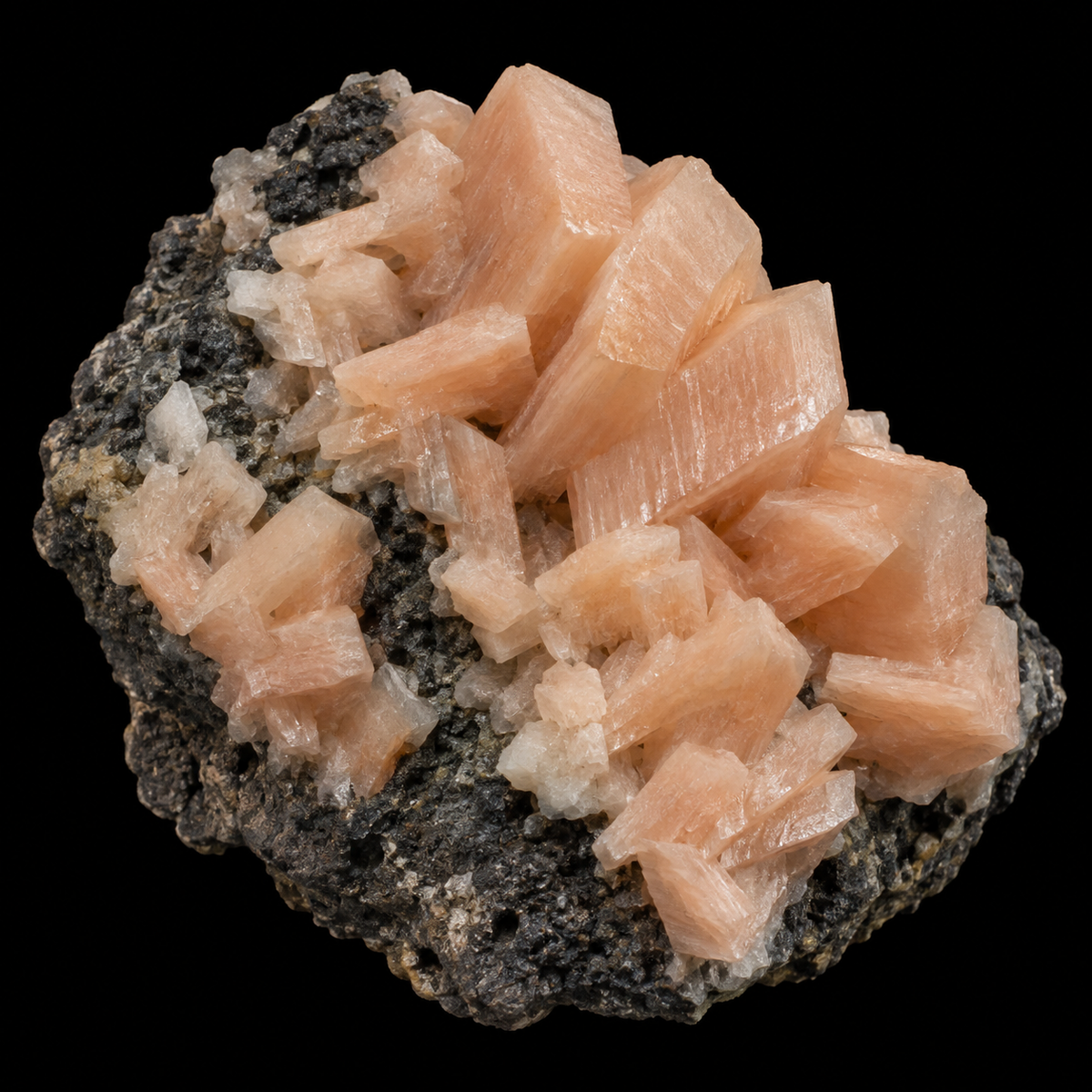

片沸石｜Heulandite

片沸石，是一組屬於沸石群的含水鋁矽酸鹽礦物。它常形成薄板狀、葉片狀或略呈楔形的晶體，在玄武岩氣孔與裂隙裡與其他沸石、方解石、魚眼石或石英共同生長。透明到半透明的晶體可以是無色、白色，也可能帶粉紅、橙、黃、褐或綠色；完全解理面上常出現柔和的珍珠光澤。

「Heulandite」在現代礦物分類中需要多說一步。它不是一個不分成分的單一物種名稱，而是片沸石亞群的總稱；當晶體中主要的框架外陽離子被確定後，物種名稱會寫成 Heulandite-Ca、Heulandite-Na、Heulandite-K、Heulandite-Sr 或 Heulandite-Ba。若成分尚未分析到足以判定主導陽離子，使用 Heulandite 作為亞群層級的名稱會更準確。

這也使片沸石很適合被當成一種「分類不是只看外觀」的礦物來閱讀。看起來相似的板狀晶體，可能因框架化學與框架外陽離子的差異而落在不同物種；而它與外形、結構都很接近的斜發沸石（Clinoptilolite）之間，也需要化學資料才能可靠區分。

在 DIYU Reading System 中，片沸石閱讀的是「容納」：一個結構如何在維持自身框架的同時，保留水與可交換陽離子存在的位置。

Heulandite is a subgroup of hydrated aluminosilicate minerals within the zeolite group. It commonly forms thin tabular, bladed, or slightly wedge-shaped crystals in cavities and fractures of basaltic rocks, often growing with other zeolites, calcite, apophyllite, or quartz. Crystals may be colourless or white, but can also appear pink, orange, yellow, brown, or green. On its perfect cleavage, the lustre often becomes distinctly pearly.

In modern mineral nomenclature, “Heulandite” requires one additional level of precision. It is not a single compositionally unrestricted species name, but a subgroup name. Once the dominant extra-framework cation is established, species are named Heulandite-Ca, Heulandite-Na, Heulandite-K, Heulandite-Sr, or Heulandite-Ba. When the chemistry has not been determined well enough to establish cation dominance, Heulandite is more appropriately used at the subgroup level.

This makes Heulandite a useful example of why mineral identification cannot rely on appearance alone. Similar tabular crystals may belong to different species depending on framework chemistry and extra-framework cations. Its close relationship with Clinoptilolite also requires chemical information for reliable distinction.

Within the DIYU Reading System, Heulandite is read through “accommodation”: how a structure can preserve its framework while still containing space for water and exchangeable cations.

片沸石亞群屬於沸石群，也就是具有開放式三維鋁矽酸鹽框架的含水架狀矽酸鹽。矽氧與鋁氧四面體彼此連接形成框架；鋁取代部分矽後產生的負電荷，則由位於框架孔道中的鈉、鈣、鉀、鍶、鋇等陽離子平衡。水分子也位在這些框架外空間之中。這些孔道與空腔，使沸石可以在一定條件下脫水、重新吸水，以及進行陽離子交換。

現行分類把 Heulandite Subgroup 分成五個物種：Heulandite-Ca、Heulandite-Na、Heulandite-K、Heulandite-Sr 與 Heulandite-Ba。亞群的一般組成可概括為富 Na／Ca／K、含水的鋁矽酸鹽框架，但真正命名到物種層級時，需依框架外陽離子的主導關係判定。常見的 Heulandite-Ca 公式可寫作約 (Ca,Na)₅(Si₂₇Al₉)O₇₂·26H₂O；不同資料庫使用不同的正規化方式，因此公式中的總原子數與水分子數可能以另一套倍率表示，但描述的是同一類結構與組成關係。

以 Heulandite-Ca 為例，它屬單斜晶系，莫氏硬度約 3.5–4，比重約 2.1–2.2，具有 {010} 完全解理，性質偏脆。晶體常沿 {010} 呈板狀，中央較寬、兩端收窄時會形成收藏界常說的「棺材形」輪廓；也可形成晶簇、粒狀或塊狀集合體。光澤通常為玻璃光澤，而解理面因反射方式不同，常轉為珍珠光澤。

片沸石與斜發沸石的關係尤其重要。兩者具有相同的 HEU 型框架拓撲，化學組成也形成連續變化。依 IMA 沸石命名建議，Heulandite 系列以框架 Si:Al < 4.0 定義，Clinoptilolite 系列則為 Si:Al ≥ 4.0。這個 4.0 的界線是一個為了分類與長期使用習慣而保留的規則，不代表自然界在那個數值上突然出現結構斷裂。過去曾有人以加熱後的穩定性來區分兩者，但現代命名不把熱穩定性當作正式定義基礎。

因此，肉眼看到粉紅色、板狀、珍珠光澤的沸石，並不能單靠外觀確認它一定是某一種 Heulandite，也不能可靠排除 Clinoptilolite。嚴謹鑑定通常需要化學分析，並搭配 X 光繞射確認結構。

在地質環境中，片沸石常形成於火山岩的氣孔、裂隙與杏仁狀空腔，也可出現在火山玻璃與凝灰岩經低溫水—岩反應、成岩或熱液改造之後的產物中。Handbook of Mineralogy 記錄它出現在玄武岩空洞、強烈風化的安山岩與輝綠岩，以及火山玻璃與凝灰岩的脫玻化產物；USGS 對 Oregon Siletz River Volcanics 的研究也記錄了 stilbite–heulandite–chabazite 等低溫沸石組合。

所以，片沸石不是一種只屬於「晶洞」的裝飾性礦物。它是火山岩與水長時間互動後留下的礦物紀錄之一：原本的玻璃與岩石成分被重新分配，新的含水框架在空隙中建立，並把當時流體中的部分陽離子收進結構。

Heulandite belongs to the zeolite group, a family of hydrated framework silicates built from an open three-dimensional aluminosilicate network. Silicon-oxygen and aluminium-oxygen tetrahedra connect to form the framework. When aluminium substitutes for part of the silicon, the framework acquires a negative charge that is balanced by extra-framework cations such as sodium, calcium, potassium, strontium, or barium. Water molecules also occupy these extra-framework spaces. The resulting channels and cavities allow zeolites, under appropriate conditions, to dehydrate and rehydrate and to participate in cation exchange.

The current Heulandite Subgroup contains five species: Heulandite-Ca, Heulandite-Na, Heulandite-K, Heulandite-Sr, and Heulandite-Ba. The subgroup can be described broadly as a hydrated aluminosilicate framework containing Na, Ca, K and related extra-framework cations, but species-level naming depends on which cation is dominant. For the common Heulandite-Ca, a representative formula is approximately (Ca,Na)₅(Si₂₇Al₉)O₇₂·26H₂O. Different references normalize zeolite formulae differently, so atom totals and the stated number of water molecules may be written at another scale without representing a different basic mineral structure.

Heulandite-Ca is monoclinic, with a Mohs hardness of about 3.5–4 and a specific gravity of roughly 2.1–2.2. It has perfect cleavage on {010} and is brittle. Crystals are commonly tabular on {010}; when they broaden toward the centre and narrow toward the ends, collectors often describe the outline as “coffin-shaped.” Heulandite may also occur in clusters, granular aggregates, or massive material. The lustre is generally vitreous, becoming pearly on the perfect cleavage.

The relationship between Heulandite and Clinoptilolite is especially important. Both share the same HEU framework topology, and their compositions form a continuous range. Under the IMA-recommended zeolite nomenclature, the Heulandite series is defined by a framework Si:Al ratio below 4.0, whereas Clinoptilolite has Si:Al at or above 4.0. The value of 4.0 is a conventional nomenclatural boundary retained for historical and practical reasons; it does not represent an abrupt structural break in nature. Thermal stability was once used as an identification aid, but it is not the formal basis of the modern definition.

A pink, tabular zeolite with pearly cleavage therefore cannot be assigned confidently to a particular Heulandite species by appearance alone, nor can Clinoptilolite be reliably excluded on macroscopic appearance. Careful identification generally requires chemical analysis together with X-ray diffraction.

Geologically, Heulandite commonly forms in vesicles, fractures, and amygdaloidal cavities in volcanic rocks. It can also develop when volcanic glass and tuff undergo low-temperature water-rock reaction, diagenetic alteration, or hydrothermal alteration. The Handbook of Mineralogy records Heulandite from basalt cavities, highly weathered andesite and diabase, and as a devitrification product of volcanic glasses and tuffs. USGS work on the Siletz River Volcanics in Oregon likewise documents low-temperature zeolite assemblages including stilbite–heulandite–chabazite.

Heulandite is therefore more than a decorative cavity mineral. It can be read as a mineral record of long interaction between volcanic material and water: original glass and rock components are redistributed, a new hydrated framework grows into available space, and part of the fluid’s cation inventory becomes incorporated into that structure.

片沸石的名稱在 1822 年由 Henry James Brooke 提出，用來紀念礦物收藏家與礦物商 John Henry Heuland。這個歷史名稱後來經過沸石分類的重新整理，才發展成今天帶有 -Ca、-Na、-K、-Sr、-Ba 後綴的物種系統。

在標本市場裡，片沸石最熟悉的形象常是淺粉紅、鮭粉或白色的板狀晶簇。印度 Maharashtra 的 Deccan basalt 產區長期產出大型而清楚的片沸石與其他沸石標本，使這種柔和色彩、薄板晶形與玄武岩母岩的組合成為收藏文化中的典型畫面。但顏色與產地都不是物種定義；同一亞群可以呈多種顏色，而不同沸石也可能形成相似的淡色板狀晶體。

「片沸石」這個中文名稱也很容易讓人把它想成真正的片狀矽酸鹽，彷彿結構像雲母一樣由一層一層的片所組成。實際上，它屬於架狀矽酸鹽，擁有三維的沸石框架。所謂「片」，更接近晶體外在習性與解理給人的視覺印象，而不是把它分類成 sheet silicate 的理由。

在近代水晶文化中，片沸石有時被連結到平靜、情緒釋放、靈性接收、夢境或高頻率等概念。這些屬於當代象徵與個人使用文化，並不是礦物學或醫學已證實的作用。若要保留它們，應把它們放回文化閱讀的位置，而不是用沸石的孔道、含水性或離子交換能力去替這些說法提供不存在的科學證明。

The name Heulandite was introduced by Henry James Brooke in 1822 in honour of the mineral collector and dealer John Henry Heuland. The historical name was later reorganized through modern zeolite nomenclature into the present species system using the suffixes -Ca, -Na, -K, -Sr, and -Ba.

In the specimen market, Heulandite is often recognized through pale pink, salmon, or white tabular crystal clusters. The Deccan basalt provinces of Maharashtra, India, have long produced large and well-developed Heulandite and associated zeolite specimens, making the combination of soft colour, thin tabular habit, and dark volcanic matrix familiar within collecting culture. Neither colour nor locality, however, defines the species. Members of the subgroup occur in multiple colours, and other zeolites can form similarly pale tabular crystals.

The Chinese name 片沸石 can also encourage an easy misunderstanding: that Heulandite is structurally a sheet silicate, perhaps comparable to mica. It is not. Heulandite is a framework silicate with a three-dimensional zeolite network. The impression of “sheets” belongs more to crystal habit and perfect cleavage than to its silicate classification.

Modern crystal culture sometimes associates Heulandite with calmness, emotional release, spiritual receptivity, dreams, or “high frequency.” These are contemporary symbolic and personal-use interpretations, not demonstrated mineralogical or medical effects. If such cultural readings are discussed, they should remain clearly identified as cultural language rather than being retroactively justified by zeolite channels, hydration, or ion-exchange properties.

片沸石最有趣的地方，是它同時呈現「薄」與「框架」。

從外面看，一顆發育良好的晶體往往像薄板：面積大、厚度小，邊緣清楚，完全解理又讓晶體容易沿特定方向分開。珍珠光澤會在解理面上滑動，使它看起來比許多緻密礦物更輕、更柔和。

但如果把閱讀停在「薄片」，就會誤讀它的內部。片沸石並不是靠一層層可剝離的矽酸鹽片維持，而是由四面體連成三維框架；真正特殊的是，這個框架不是把空間全部填滿。孔道裡存在水與框架外陽離子，而這些陽離子在一定條件下還可以交換。

所以片沸石的形並不是「空」與「實」二選一。

它的穩定結構本身就包含空間。

框架負責保持關係；孔道則允許某些東西存在、離開、被替換。這不是鬆散，也不是沒有界線，而是一種把可變動部分安排在結構之內的方式。

另一方面，片沸石與斜發沸石的連續化學關係又提醒我們：自然中的邊界有時是為了理解而畫出的。Si:Al = 4.0 對命名很有用，但晶體化學並沒有在這個數字上突然停止延續。

因此，反覆觀看片沸石之後，留下的不是「柔軟」或「療癒」，而是幾個更接近材料本身的詞：框架、孔道、交換、界線與連續。

One of the most interesting qualities of Heulandite is that it presents “thinness” and “framework” at the same time.

From the outside, a well-developed crystal often appears plate-like: broad in area, relatively thin, sharply bounded, and capable of separating along its perfect cleavage. Pearly reflections move across the cleavage surface, giving the crystal a visually lighter and softer presence than many dense minerals.

But stopping at the image of a “sheet” would misread its internal structure. Heulandite is not held together as a stack of easily separated silicate layers. Its tetrahedra form a three-dimensional framework, and what makes that framework distinctive is that it does not fill every part of the volume. Channels contain water and extra-framework cations, and some of those cations can be exchanged under appropriate conditions.

Heulandite is therefore not a simple opposition between solid and empty.

Space is part of the stable structure itself.

The framework preserves relationships; the channels permit certain occupants to remain, leave, or be replaced. This is not structural looseness and it is not an absence of boundaries. It is a way of locating variability inside an ordered framework.

Its continuous chemical relationship with Clinoptilolite adds another layer. Boundaries in natural classification are sometimes drawn because they help us describe a continuum. The Si:Al = 4.0 boundary is useful for nomenclature, but crystal chemistry does not abruptly stop being continuous at that number.

After repeated observation, Heulandite therefore leaves behind terms closer to its material reality than “softness” or “healing”: framework, channel, exchange, boundary, and continuity.

DIYU 對片沸石的閱讀，從一個很實際的結構事實開始：

空隙，不一定代表缺少。

在沸石的框架裡，孔道不是後來破掉的洞，而是結構的一部分。水分子與框架外陽離子可以位在其中；在合適條件下，部分水可以進出，部分陽離子可以交換，而框架仍然維持自己的基本拓撲。

這很容易被浪漫化成「吸收負能量」或「交換能量」。DIYU 不做這個推論。沸石的脫水、吸水與陽離子交換是材料與化學現象，它們並沒有證明晶體能替人吸走情緒、疾病或某種不可測量的能量。

如果把科學事實留在它應有的位置，反而可以得到一個更乾淨的個人閱讀：

有些穩定，不是把所有位置填滿。

有些完整，也不是拒絕所有改變。

真正重要的可能是分清楚兩件事：什麼構成框架，什麼只是暫時位在框架之中。

若每一個進入生命的東西都被當成結構本身，任何離開都會像崩塌；但如果知道哪些是支撐關係的骨架，哪些是可以流動、交換、更新的內容，改變就不必等於全部重建。

片沸石也提醒另一件事：分類上的界線可以有用，卻不一定代表自然真的在那裡斷開。Heulandite 與 Clinoptilolite 共享同一類框架，成分連續變化，人為以一個比例建立名稱邊界，是為了讓描述更清楚，而不是宣告兩邊毫無關係。

因此，片沸石的 DIYU Reading 最後收在「容納｜Accommodation」。

不是什麼都接受。

也不是把所有空位填滿。

而是讓框架足夠清楚，讓變動有地方發生。

DIYU’s reading of Heulandite begins with a practical structural fact:

Empty space does not necessarily mean something is missing.

In a zeolite framework, channels are not holes created by damage; they are part of the structure. Water molecules and extra-framework cations can occupy them. Under appropriate conditions, some water can leave and return, and some cations can be exchanged, while the basic framework topology remains.

It would be easy to romanticize this into claims about “absorbing negative energy” or “exchanging energy.” DIYU does not make that inference. Dehydration, rehydration, and cation exchange are material and chemical phenomena. They do not demonstrate that a crystal removes emotions, illness, or an undefined form of energy from a person.

Once the scientific fact is left where it belongs, it can still support a cleaner personal reading:

Some forms of stability do not require every position to be filled.

Some forms of completeness do not require all change to be refused.

The more useful distinction may be between what constitutes the framework and what is temporarily held within it.

If everything that enters a life is treated as part of its permanent structure, every departure can feel like collapse. But when we can distinguish the relationships that provide the framework from the contents that may move, exchange, or be renewed, change does not always require rebuilding everything.

Heulandite also offers a second reminder: a classification boundary can be useful without implying that nature truly breaks at that line. Heulandite and Clinoptilolite share the same framework type and pass through a continuous chemical range. A ratio is used to establish a naming boundary because it improves description, not because the two sides become unrelated.

DIYU therefore closes its reading of Heulandite with “Accommodation.”

Not accepting everything.

Not filling every available space.

But keeping the framework clear enough that change has somewhere to occur.
